SPECIFICATIONS

Dry Weight

845 lbs / 384 kg

Displacement

106 ci / 1731 cc



ENGINE

Battery

12 volts / 18 amp hours

Charging System

48 amps max output

Clutch

Wet, multi-plate

Compression Ratio

9.4 : 1

Cooling System

Air / oil

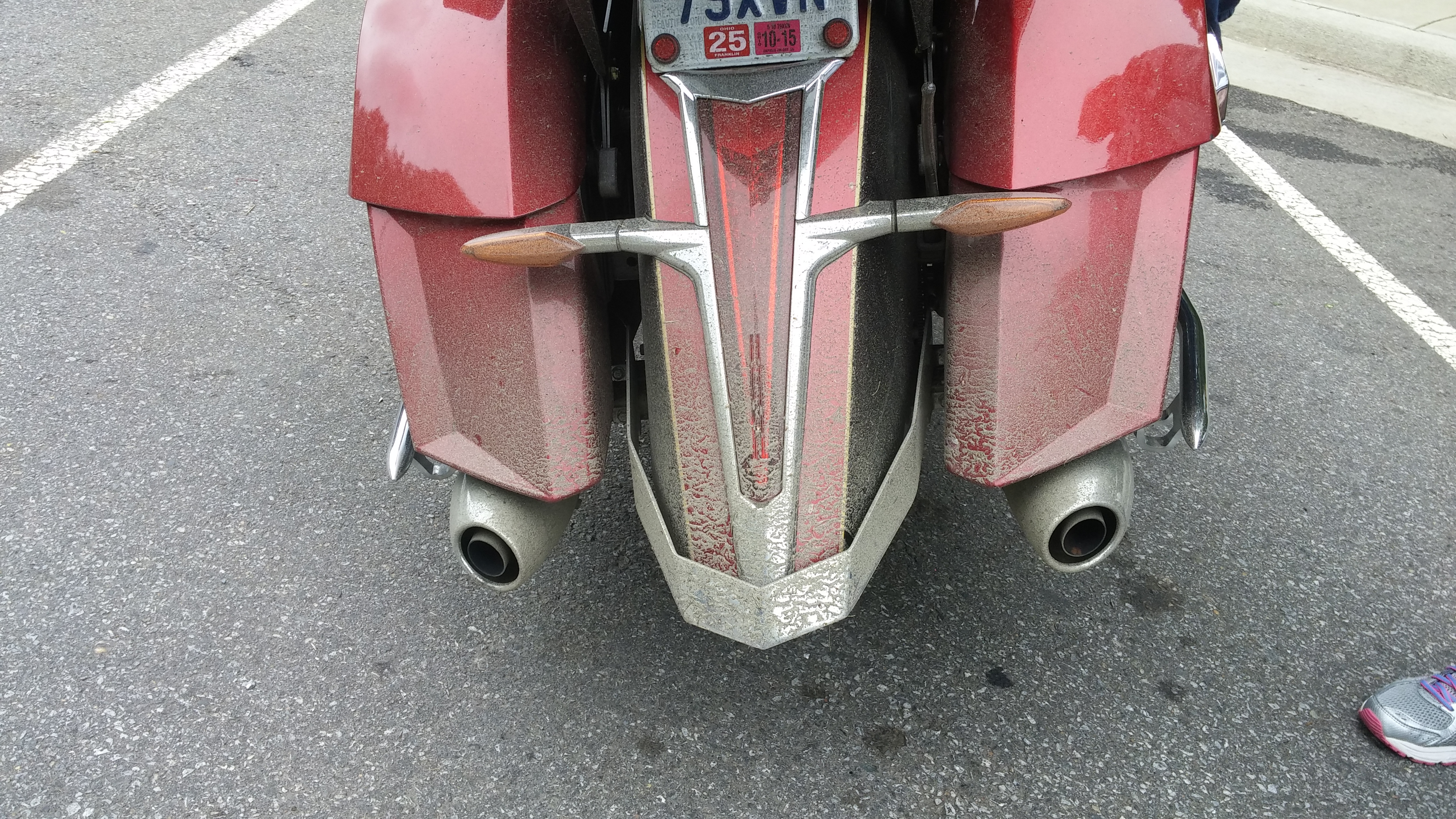

Exhaust

Split dual exhaust with crossover

Final Drive

Carbon Fiber Reinforced Belt

Fuel Capacity

5.8 gal / 22 ltr

Fuel System

Electronic Fuel Injection with dual 45mm throttle body

Primary Drive

Gear drive with torque compensator

Transmission

6-speed overdrive constant mesh

Valve Train

Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters

Bore x Stroke (mm)

101 x 108 mm

Engine Type

4-stroke 50° V-Twin



SUSPENSION

Front Suspension

Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel

Rear Suspension

Single, mono-tube gas, cast aluminum with constant rate linkage, 4.7 in / 120 mm travel, air adjustable



BRAKES

Brake System Type

Conventional w/ ABS

Front Braking System

Dual 300mm floating rotor with 4-piston calipers

Rear Braking System

300mm floating rotor with 2-piston caliper



TIRES / WHEELS

Front Tire

130/70R18 Dunlop Elite 3

Front Wheel

18 x 3.0 in

Rear Tire

180/60R16 Dunlop Elite 3

Rear Wheel

16 x 5.0 in



CHASSIS

Ground Clearance

5.8 in / 148 mm

GVWR

1360 lbs / 618 kg

Rake/Trail

29.0° / 5.6 in / 142 mm

Seat Height

26.25 in / 667 mm

Wheelbase

65.7 in / 1670 mm

Length

108.1 in / 2747 mm

Oil Capacity

5.0 qts / 4.75 ltr



FEATURES

Color Swatches

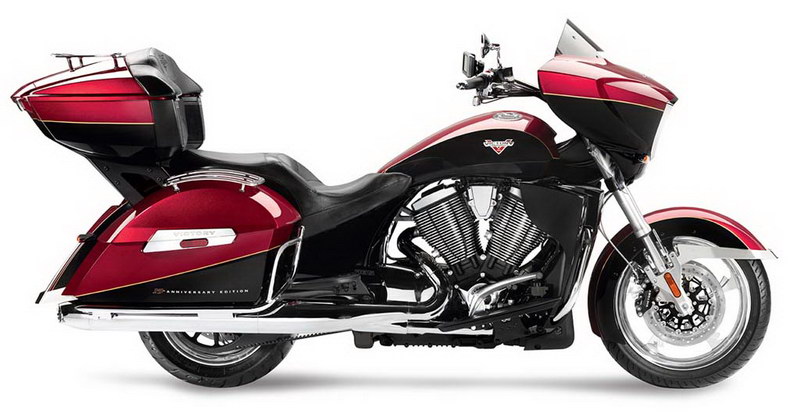

Antares Red over Gloss Black with Gold Pinstriping

Colors

Antares Red over Gloss Black with Gold Pinstriping
